Marine Clear View Screen

Name: Marine Clear View Screen
Brand: Zhenjiang Matchau Marine Equipment Co.,Ltd.

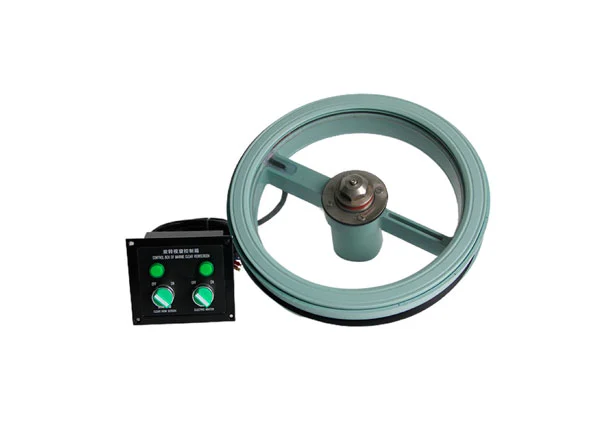

WS-300CR and WS-350CR Marine Clear View Window Screen are primarily composed of three components: the main frame, motor, and control box. Rotary windows are installed on the cabin walls of a ship. During operation, waves, rain, snow, and hail are immediately expelled by the centrifugal force of rotation, ensuring that water does not adhere to the glass, maintaining clear visibility.

The Marine Clear View Screen for sale can be equipped with electric heating devices to melt ice and snow in low-temperature environments, ensuring the glass pane and main window frame remain free from freezing, allowing for reliable operation.

Get a Quote 

Specification of Marine Clear View Screen

Ambient air humidity	-25℃~+55℃
Power specification	AC220V 50HZ
Translucent diameter	WS-300CR ∅300mm WS-350CR ∅350mm
Speed	≥1400rpm/min
Power consumption of windows	≤90W
Electric heater power consumption	≤250W
Protection level	IP22
Weight	≤12kg
Windows IP55 in working state

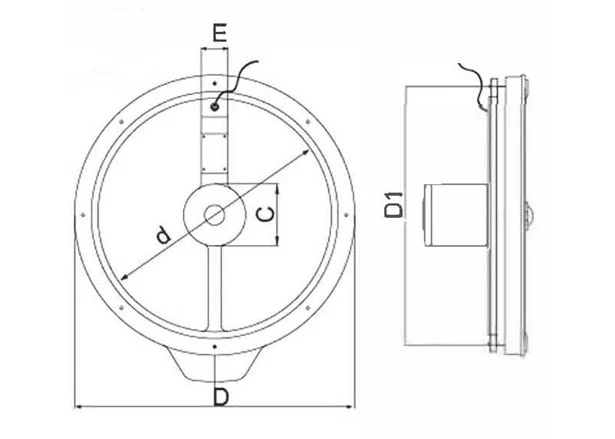

Relevant Dimensional Parameters of Marine Clear View Screen

Type	WS-300CR	WS-350CR
Out diameter D	∅370	∅420
Translucent diameter d	∅300	∅350
Motor outer diameter c	∅93	∅93
Line width E	36	36
Installation Dimension D1	∅339	∅389

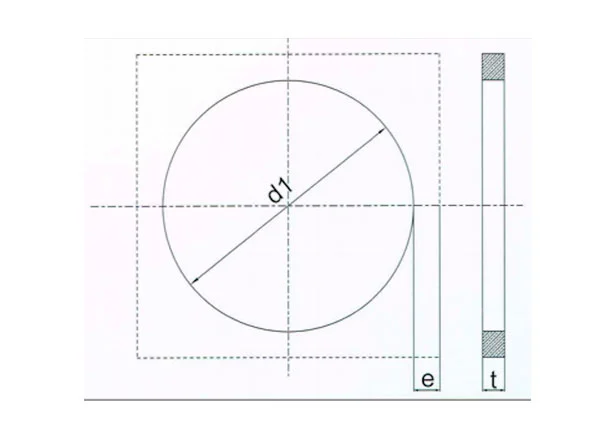

Installation Parameters of Marine Clear View Screen

The Clearview Marine Window Screen is installed on the tempered glass or metal wall of the ship's cabin. The installation specifications of Clear View Marine Screen include:

Opening Diameter (d):

- The diameter of the opening is denoted as "d1."

Minimum Distance from Window Edge to Transparent Edge (e):

- The minimum distance from the window edge to the transparent edge of the glass is specified as "e."

Installation Wall Thickness (t):

- The thickness of the installation wall is represented by "t."

These parameters ensure the proper and secure installation of the Marine Clear View Screen for sale, optimizing its performance on the ship's cabin.

Model	WS-300CR	WS-350CR
Diameter of the opening: d1(mm)	∅341⁺¹₀	∅391 ⁺¹₀
Transparent edge of the glass: e (mm)	≥50
Thickness of installation wall: t (mm)	10,12,15, (19)
